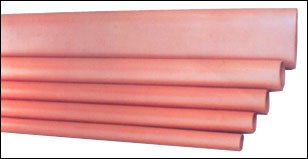

Heat Shrinkable Tubes Tube Tubing  Anti-Tracking Tubing Tubings Are Produced From Cross-Linked Polyolefin Material That Offers Exceptional Insulation And Long Term Service Reliability.Due To Its Excellent Non-Tracking And Erosion Resistance Inbuilt Character,These Tubings Find Proven Applications In Electrical And Electronic Segment Such As:
  • An Integral part of heat shrinkable power cable terminations upto 36 KV for indoor & outdoor applications.
  • An integral part of heat shrinkable straight through joints upto 36 Kv in combination with other electrical supporting device.

Features :
  • Excellent anti-tracking performance and erosion resistance.
  • Excellent Flame retardant  properties
  • Good Weather/ UV resistance.
  • Non-carbon Material
  • Excellent chemical resistance
  • Protects against accidental flash overs
  • Halogen free
  • Easy installation and removal
  • High dielectric strength
  • Compliance with ESI 0-13 standard


Technical Specifications :


PROPERTIES
UNIT
VALUE
STANDARD
Tensile Strength
N/mm2
>=12
ASTM D 638
Ultimate elongation
%
>=300
ASTM D 638
Density
gm/cm3
1.20
ASTM D 792
Water absorption
%
<=0.5
ASTM D 570
Longitudnal Shrinkage
%
<=5
ASTM D 2671
shrinkage Temperature
oC
125
-----
Continous Temperature Limit
oC
-40 to +125
-----
Heat shock( 4 hours at 200 oC)
----
No cracking or flowing
ASTM D 2671
Thermal Ageing
----
Max 25 % drop in physical Properties
ASTM D 2671
Di-electric Strength
KV/mm
>=15
ASTM D 149
Di-Electric Constant
----
5 (Max.)
ASTM D 150
Volume Resistivity
Ω Cm
>=1014
ASTM D 257
Corrosion
----
Non-corrosive
ASTM D 2671

 Selection Chart :

Code
D Min
(mm)
D Max
 (mm)
T
(mm)
BAT   25/8
25
8
2.5
BAT 30/12
30
12
2.5
BAT 40/16
40
16
3.0
BAT 50/20
50
20
3.0
BAT 70/22
70
22
4.1
BAT 65/25
65
25
3.0
BAT 75/28
75
28
3.0
BHW 100/38
100
38
3.0
